Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: COMFAST
  • Model Number: CF-E335N
  • AP Processor: Atheros AR9341 + PA SE2576 x 2
  • Transmission Rate: 300Mbps
  • Antenna: 5dBi circle antenna
  • Theoretical distance: 0.5 KM (Indoor)
  • Outside Color: White
  • Frequency Range: 2.4GHz-2.5GHz
  • Power supply: Standard 48V PoE power supply
  • Memory: DDR 64M/FLASH 16M
  • Fit for brand products: SMC/TP-LINK/ASUS/MOTOROLA/LINKSYS wireless products
  • Special Design: 300Mbps high power poe ceiling/wall mounted ap

Packaging & Delivery

Packaging Details 300Mbps high power poe ceiling/wall mounted ap Packed in bubble bag, color box, carton to ensure 100% safety during transport
Delivery Time Within 2 working days after receiving payment if have stock


300Mbps high power poe ceiling/wall mounted ap
1. Thinnest 38.5mm
2. Water Drop design

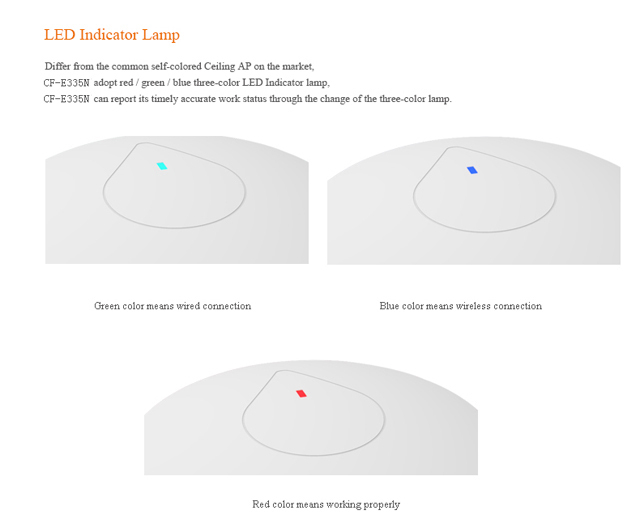

3. 3 colors LED lamp
4. 300Mbps

300Mbps Thinnest Water Drop design high power poe ceiling ap wall mounted ap for hotel & enterprise COMFAST CF-E335N




COMFAST CF-E335N 300Mbps high power poe ceiling/wall mounted ap adopt IEEE802.11n protocol wireless access technology and senior MIMO technology, transmission rate reaches 300Mbps, and compatible with IEEE802.11b/g equipment; POE power supply technology can carry out data transmission and power supply for AP with only one web cable, ceiling design and POE power supply technology make wireless networking easier, it fits for indoor wireless coverage of enterprises, schools, hotels etc. At the same time, the unique watchdog technology makes AP work more stable and ensure the wireless network operate normally for long time.

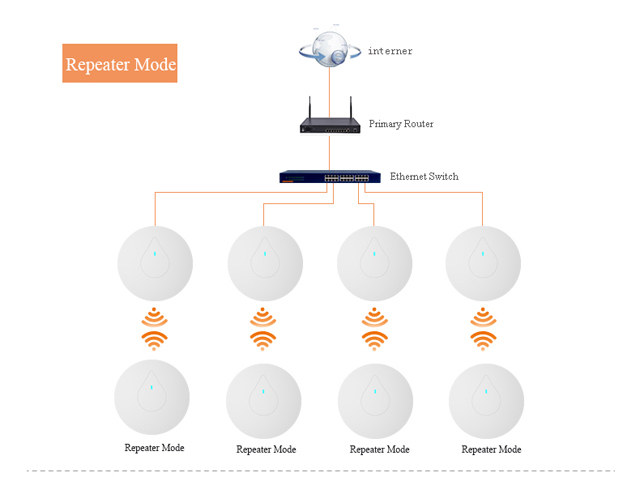

COMFAST CF-E335N 300Mbps high power poe ceiling/wall mounted ap wireless repeater mode make wireless covering and expanding earier and more flexible, can repeat CMCC/AP/wireless router etc. wireless wifi signals. Two or more CF-E335N can make several rooms covered with wifi signals and can expand unlimitedly through the wireless repeater working mode.


Kindly reminder: When use POE power supply, the quality and length of the web cable all will affect the power supply, suggest customers use the better UTP—Unshielded Twisted Pair/STP web cable, the length of the connecting cable between two equipments no longer than 70m.




Hardware specifications
ATHEROS AR9341 400MHZ RF 128MB DDR 16MB Flash (The New Chip)
Frequency Range & Channels:2.4~2.4835GHz;20MHz,40MHz
RF Power Output: 24dBm
Modulation Mode:DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM
Response Rate:300M: -68dBm@10%PER
270M: -68dBm@10%PER
130M: -68dBm@10%PER   108M: -68dBm@10%PER
54M: -85dBm@10%PER11M: -85dBm@10%PER
6M: -88dBm@10%PER   1M: -90dBm@10%PER
 Data and operational parameters
Auto transmission rate selection:802.11n: 6.5-300Mbps
802.11g: 6/9/12/18/24/36/48/54/108Mbps
802.11b: 1/2/5.5/11Mbps
Support WLAN Standards:IEEE 802.11b/g/n, IEEE 802.3u, IEEE 802.3af
Support Protocols:CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3/4/5
Using Environment & Physically Properties
Using EnvironmentPhysically Properties
Working Temperature: -30°C~65°C  Product Weight:0.855KG(Net) / 1.24KG(Gross)
Storage Temperature:-50°C~80°CProduct Size:205x205x38.5(mm)
Humidity(Non Condensing):  ≤95%Package Size:350x250x90(mm)
Based on WEB Management:Support
SNMP MIB:Support
Telnet: Support
MAC Address Control:Support
Encryption:Support 64/128 bits WEP, WPA, WPA2, 802.1X
Frequency Range:2.4~2.4835GHz
Polarization Mode:Vertical, Horizontal
Antenna Gain:5dBi



Product Show:
